DIP346 Outdoor Vertical Led Display P10 Led Display For Building Exterior Wall

  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-10D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

large led display

,

stage led display
Leave a Message
Product Description

DIP346 Outdoor Vertical Led Display P10 Led Display For Building Exterior Wall



Description:



Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.The cabinet adopted the latest design ideas,it only have the frame without the frame connection in the middle of the cabinet of general cabinet,which makes the cabinet become lighter,It has ultrathin design,the thinckness of the whole cabinet is only 90mm and it is 50mm thinner than the routione cabinet that makes installation more easier.

Good ventilation:Do not need to use air conditioning fan and save cost.

Strong adaptability:It can be applied to whole day work environment,waterproof,dustproof and airproof design.

Environmental protection and energy saving:It can save more than 40% energy compared with the conventional display.







Applications:



Outdoor Stage Performance

Outdoor Rental Led Screen

Outdoor Led Display Billboard

Outdoor Advertising Board

Building exterior wall Led screen

Truck Led Display



Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 10
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 48*16
Module pixel 768
Module size (mm) 480*160mm
LED CABINET SPECIFICATION
Cabinet size (mm) 960*960mm
Cabinet resolution (pixels) 96*96
Cabinet pixels (pixels) 9216
Cabinet material Steel
Cabinet weight (kg) 35kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥5000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 50°
Best viewing distance (m) ≥10m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1200
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P10  Outdoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Ondoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, Large viewing angle at 120 degree horizontal;

6, P10 LED display is of high resolution for Outdoor rental events that require high quality presentation and its cost is being lower for large size Outdoor LED screens use;

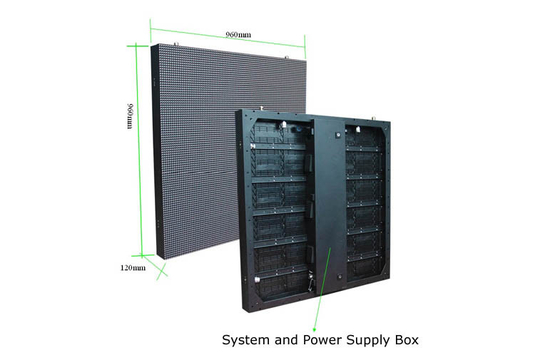

Assembly Sketch Map:



DIP346 Outdoor Vertical Led Display P10 Led Display For Building Exterior Wall 0

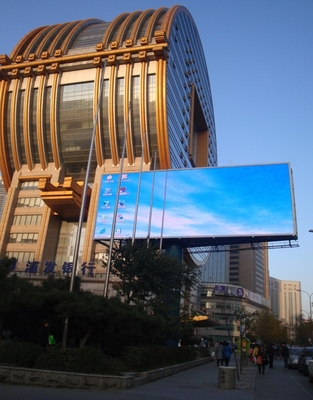

Case:



DIP346 Outdoor Vertical Led Display P10 Led Display For Building Exterior Wall 1
